4HP20 Gearbox Rebuild

logo







Introduction

A pictorial of a 4HP20 rebuild

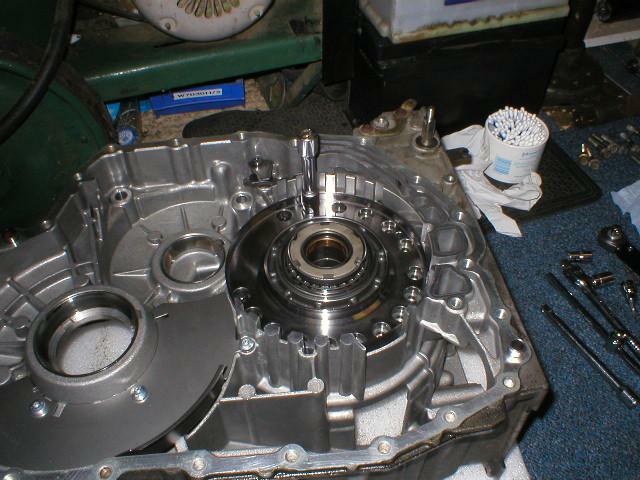

Output bearing carrier

Installing the output bearing carrier. Note tape wrapped arounmd socket to avoid any damage to the F piston bore.

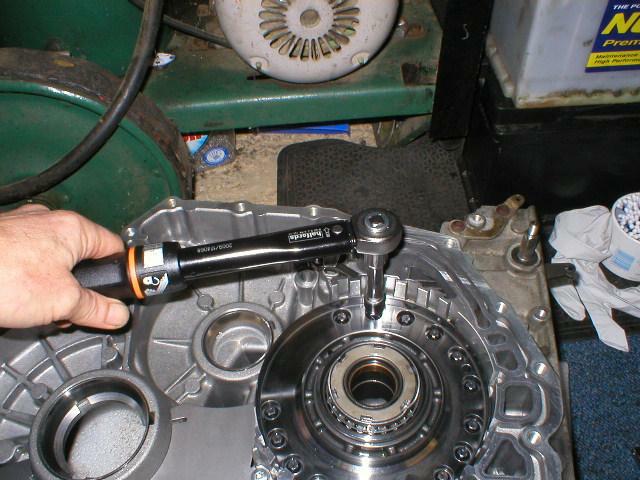

Tigentening the screws

Tightening the bolts. 35N/m Torque.

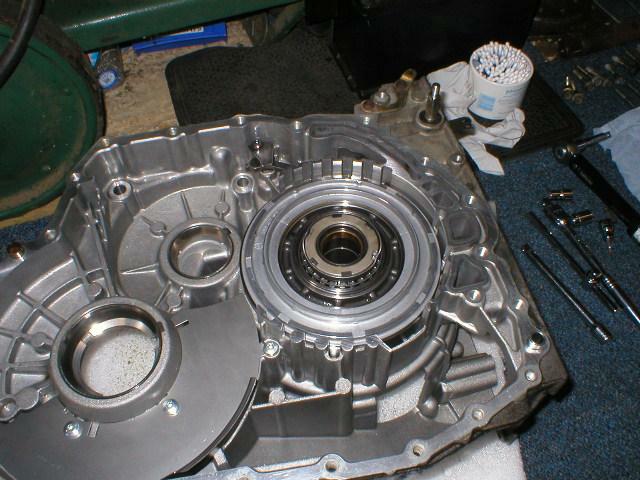

F Piston Install

Installing the F Brake Piston

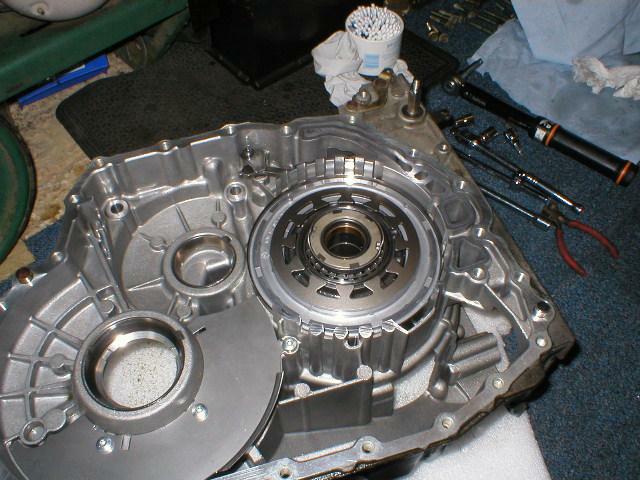

F Brake Diaphragm

F Brake Diaphragm Spring

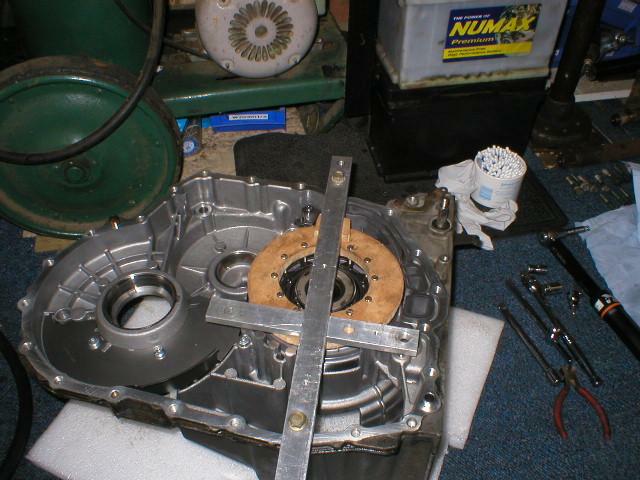

Compressing the F Spring

Compressing the F Diaphragm Spring

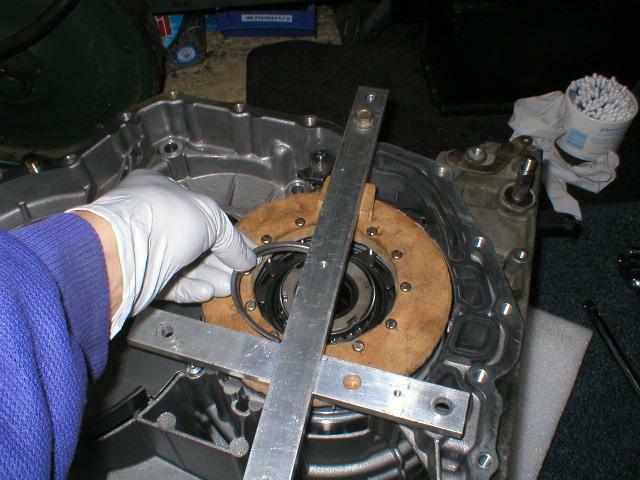

F Brake Retainers

Fitting the spring retainers

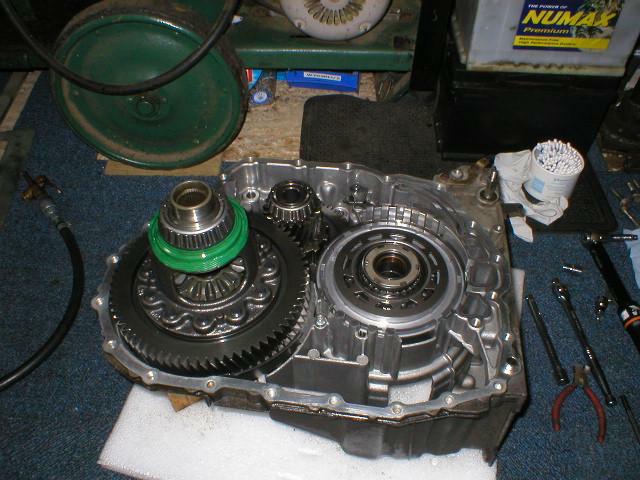

Diff and Intermediate gear

Diff and Intermediate gear fitted

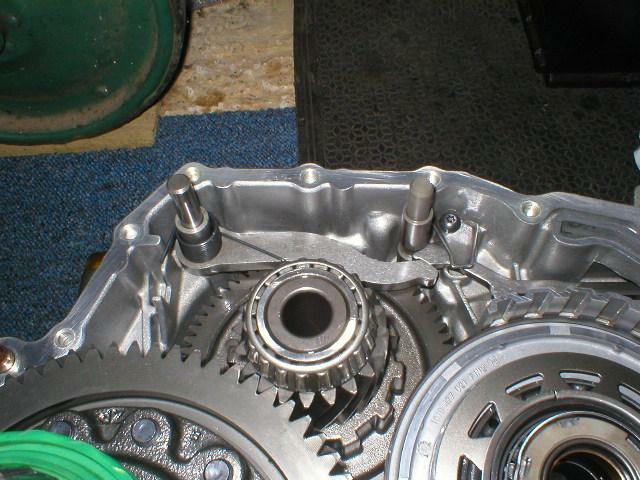

Park Pawl

Park Pawl mechanism

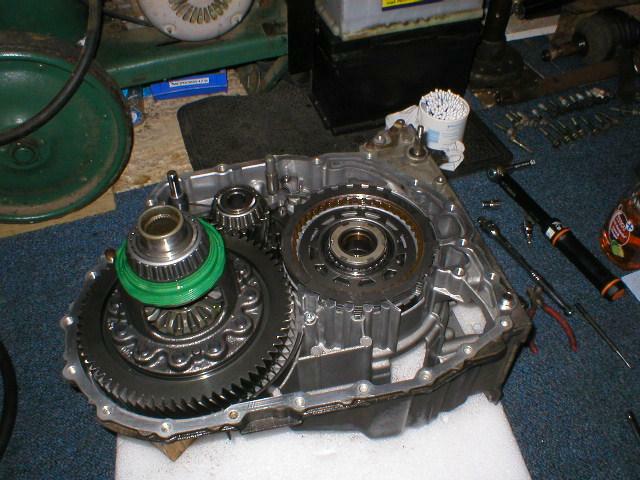

F Brake Plates

F Brake Plates

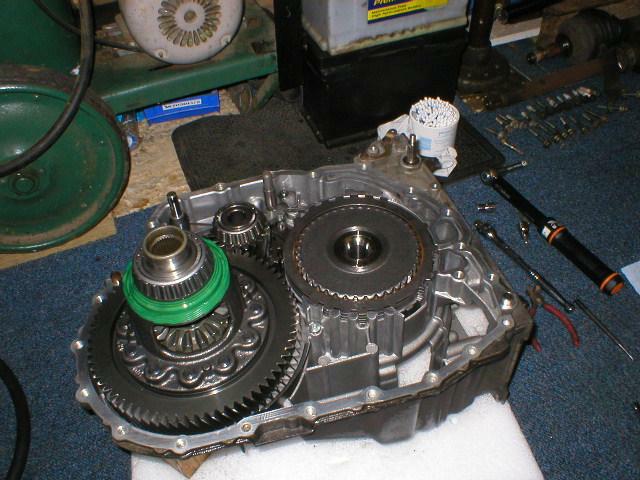

F Brake Drum

F Brake Drum

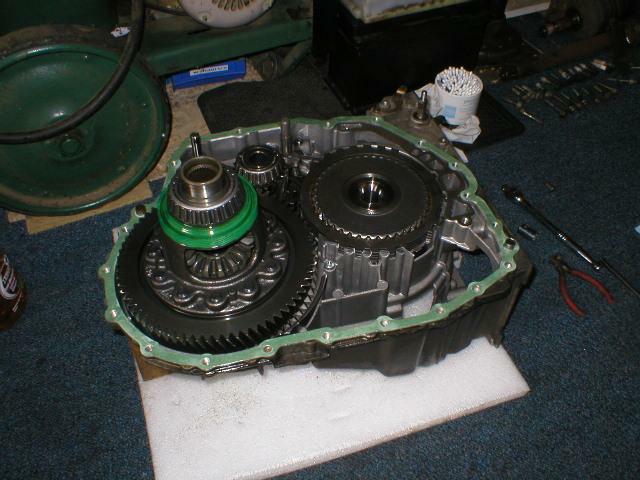

Gaskets

Gaskets fitted

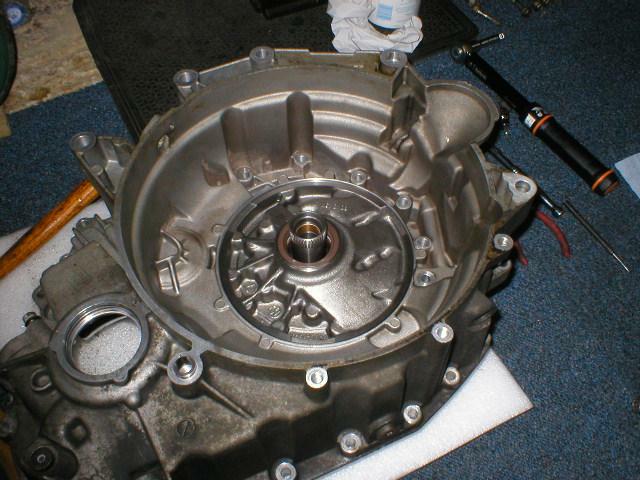

Oil Pump

Oil Pump installed

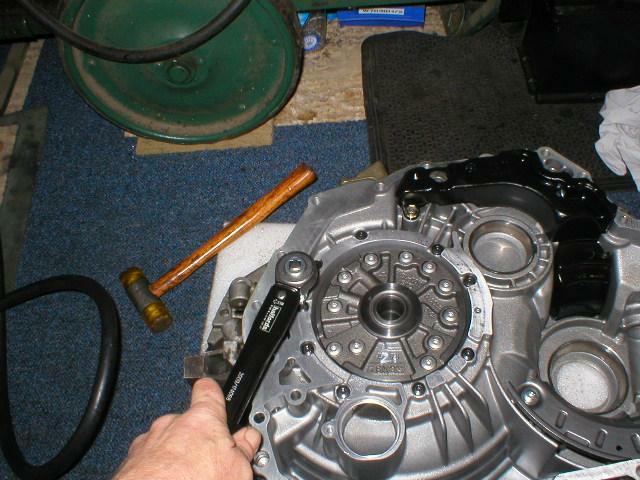

Torque Oil Pump

And torqued up

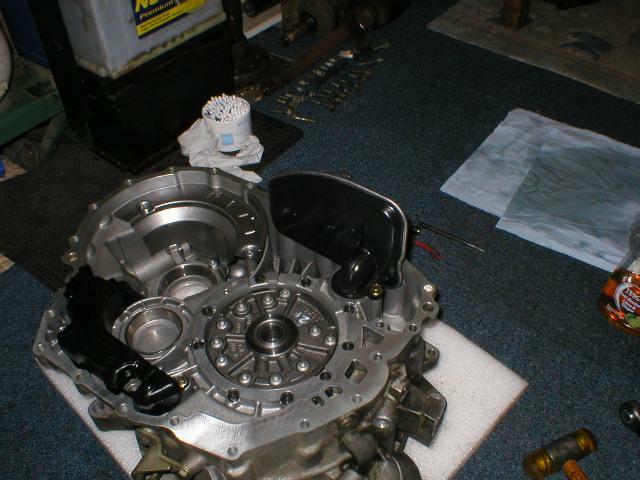

Oil Filter

Oil Filter Installed

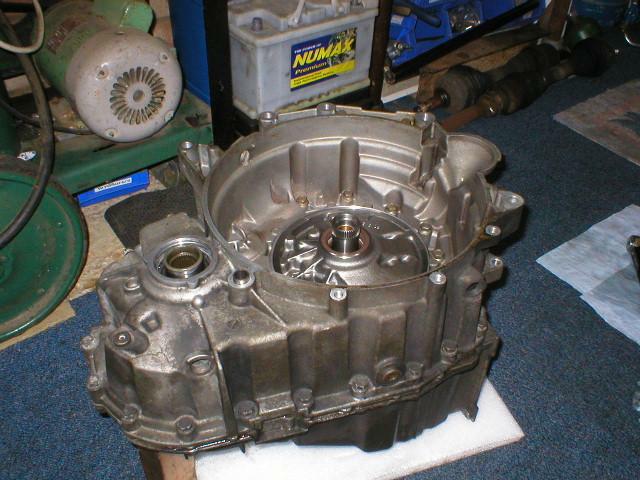

All together

Housings joined and bolted up

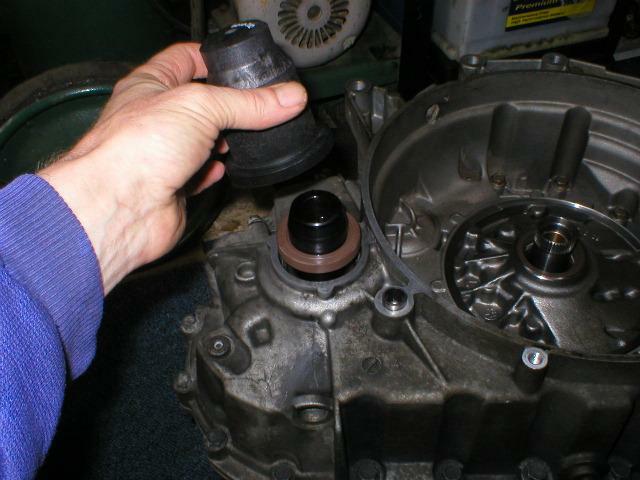

Seal Tools

Special tools to Install Diff Seals

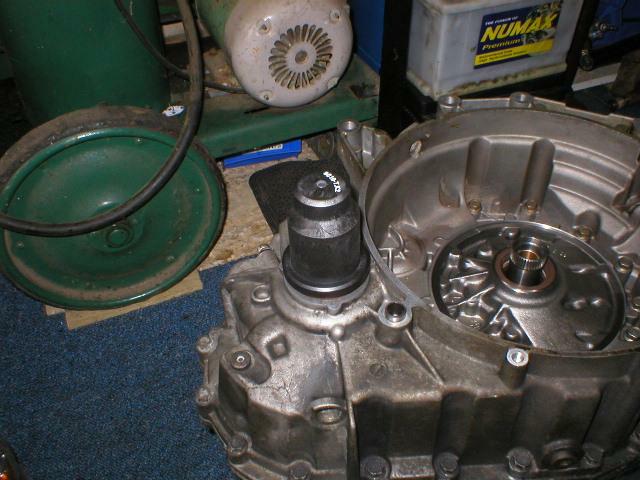

And home

Just before being tapped with a mallet to send seals home

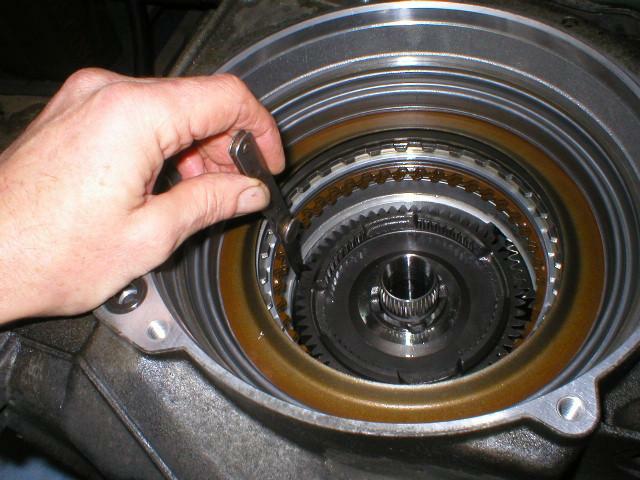

OSS Clearance Cleck

Checking the Output Speed Sensor clearance to the output gear (Sensor installed temporarily)

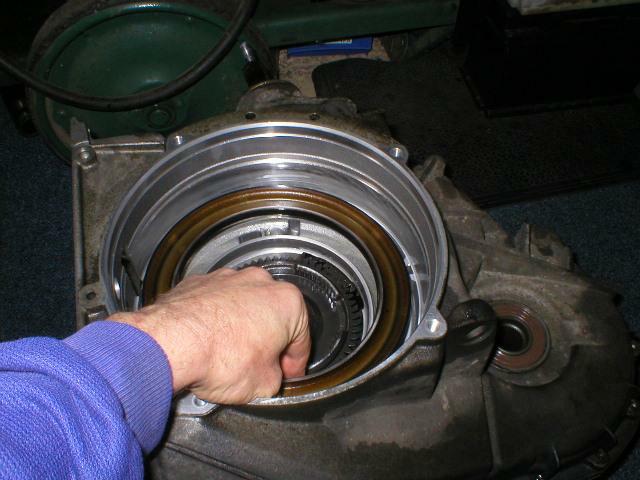

D Piston

D Brake Piston installed

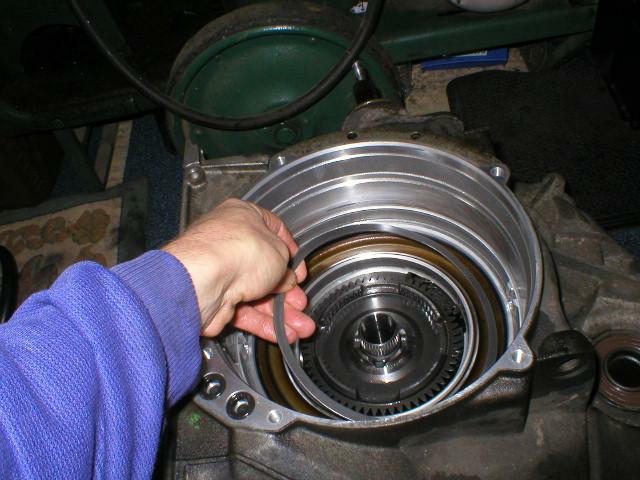

Wavy ring

Followed by the wavy ring

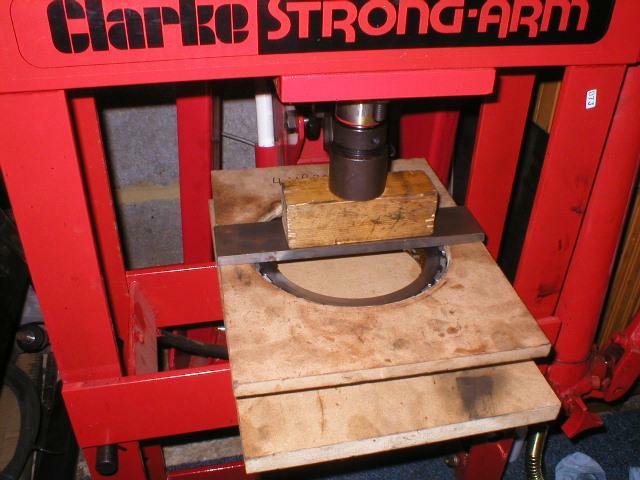

D Brake Compressing

Depressing the D diaphragm spring to allow the D brake to disassembled

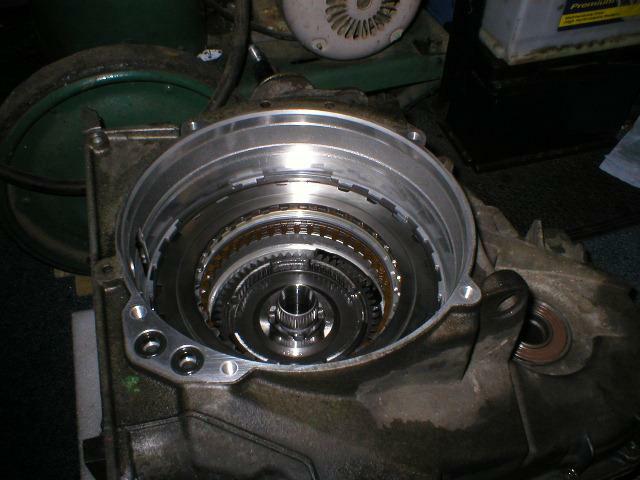

CD Brake Install

Installing the C and D Brake pack

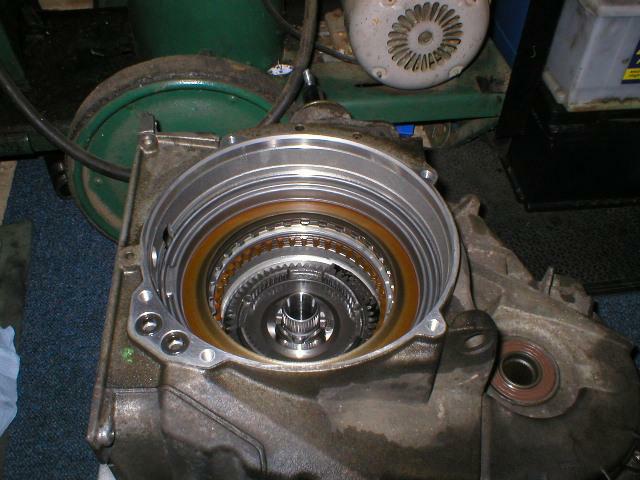

C Piston

Followed by the C Brake Piston

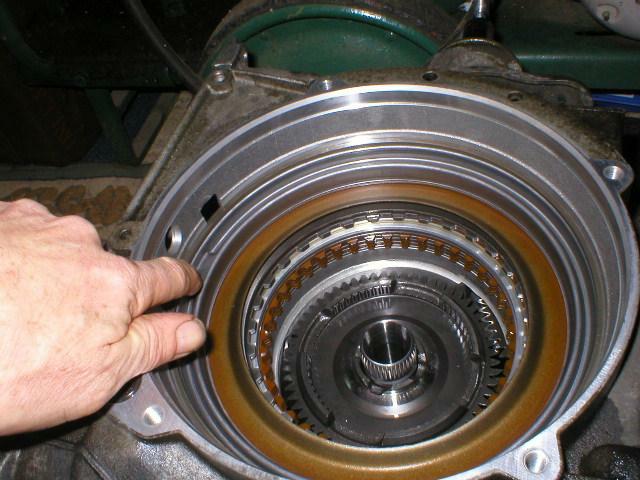

Snap Ring

And the Snap Ring

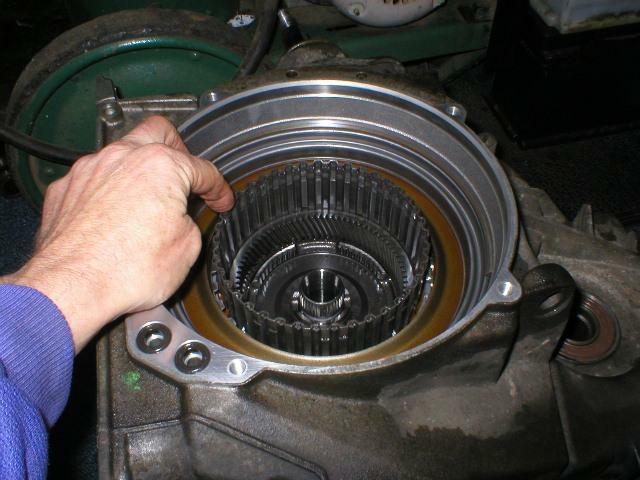

Outer Annulus

Installing the epicyclic outer annulus

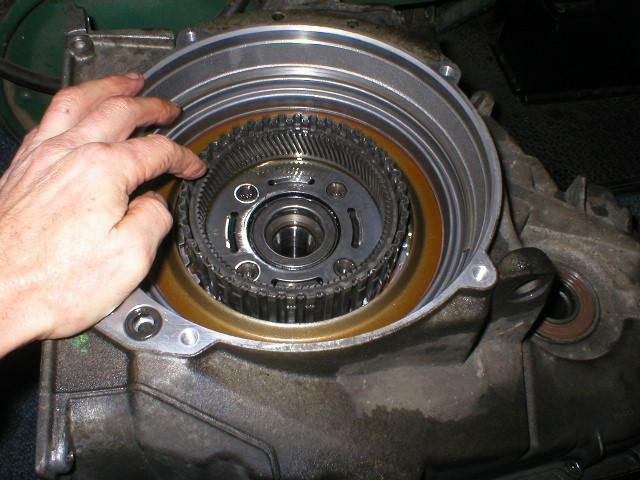

Inner Annulus

And the Inner Annulus, Planetary Sun Gear set

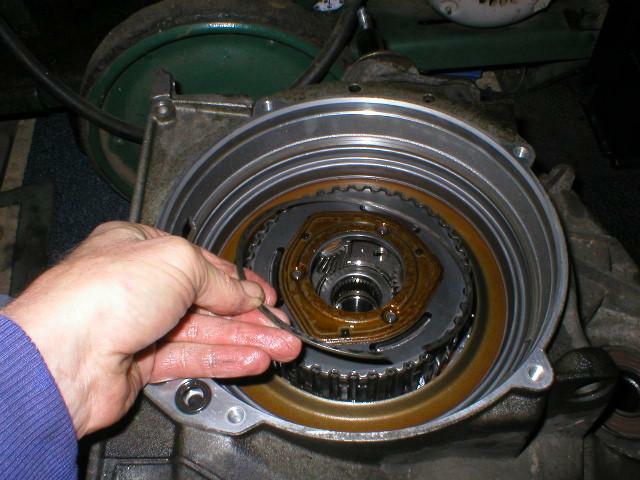

Planetary carrier

Planetary Gear carrier and Snap Ring

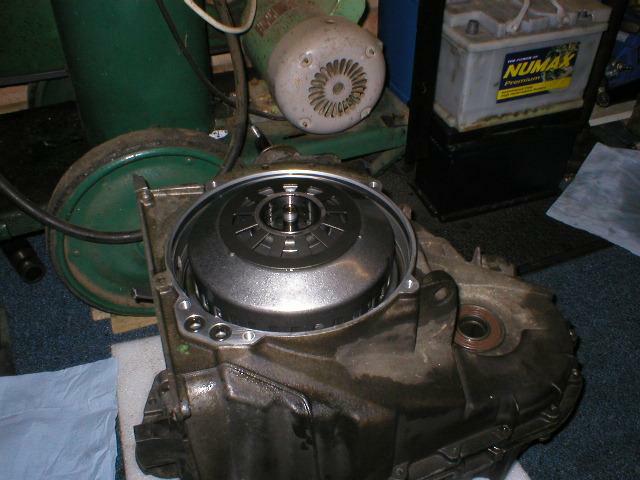

Input Shaft

Input Shaft and B/E Clutch Assemblies

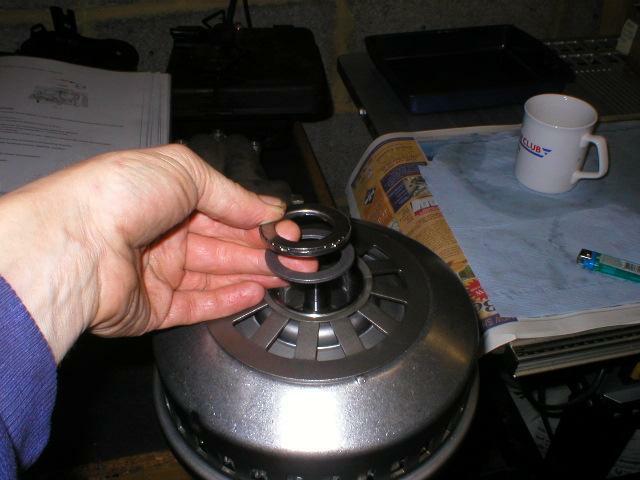

B/E bearing And Spacer

Showing the order of the B/E Clutch Spacer and Bearing that controls Input Shaft End Float

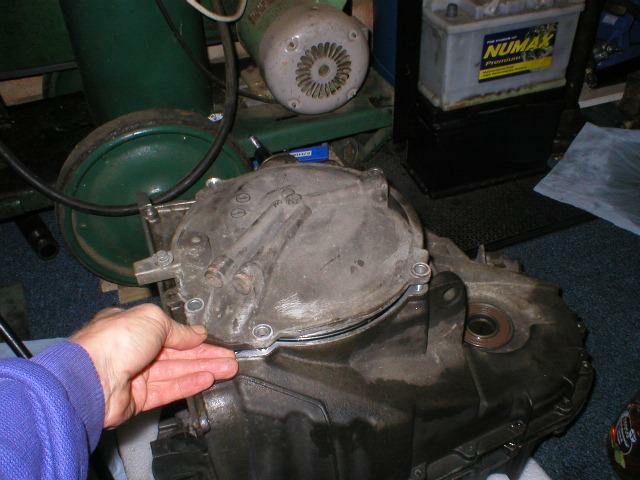

Transmisson Cover

Replacing Transmission Cover

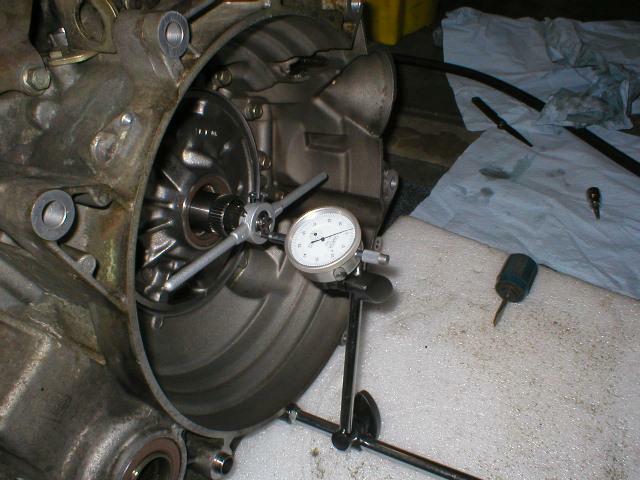

Checking End Float

Checking the Input Shaft end float

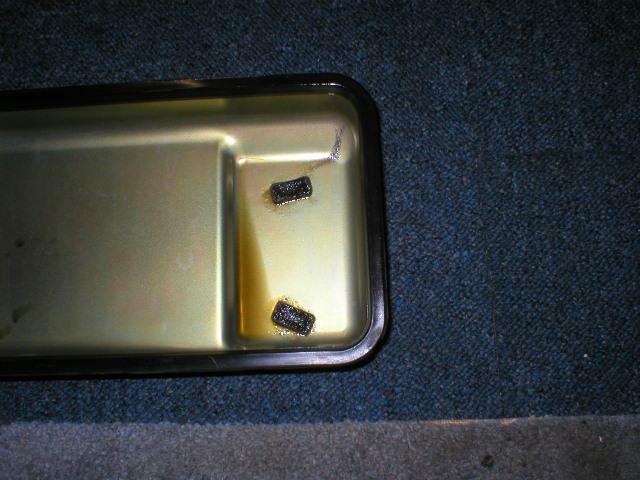

Oil Pan magnets before cleaing

Oil Pan (Valve Block Cover) Swarf magnets before Cleaning

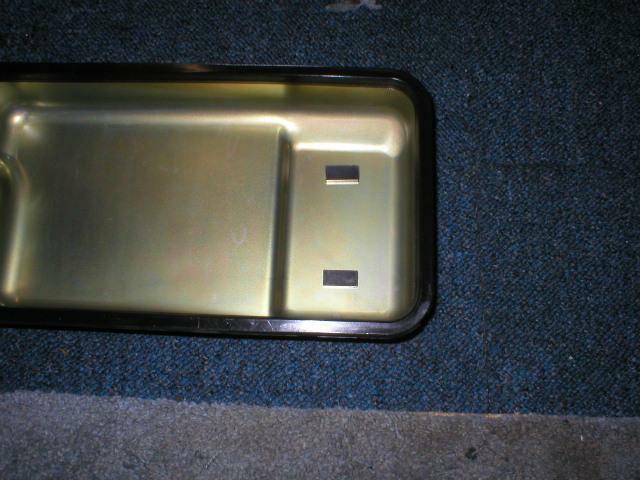

And After

And After!

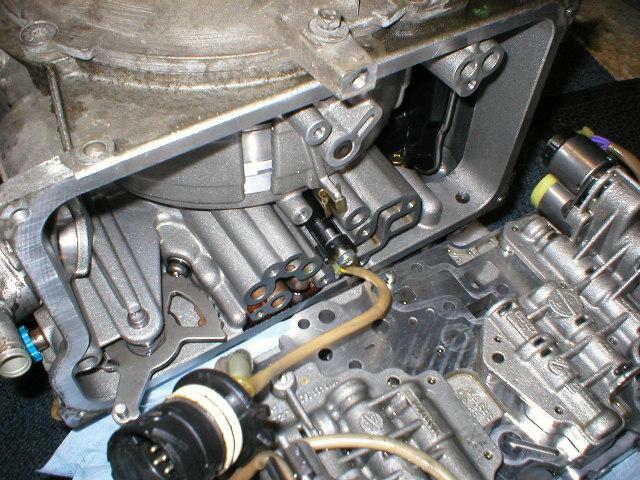

Output Speed sensor Installation

Output Speed Sensor Installation

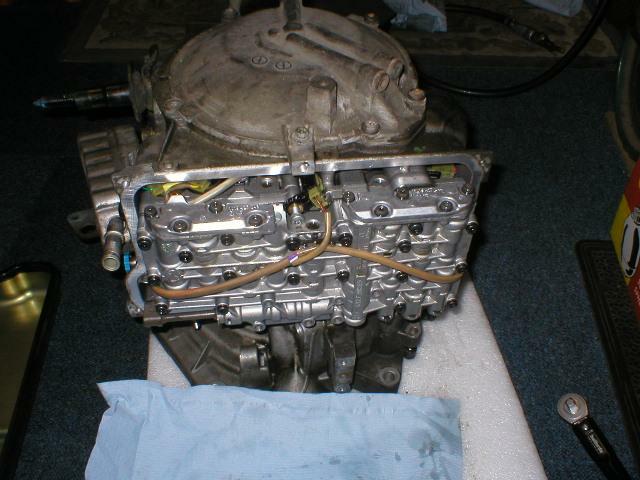

Valve Block

Valve Block Installed

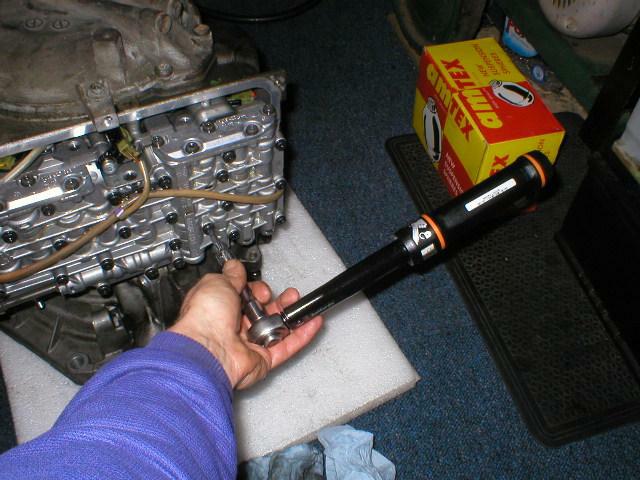

And Torqued

And torqued up

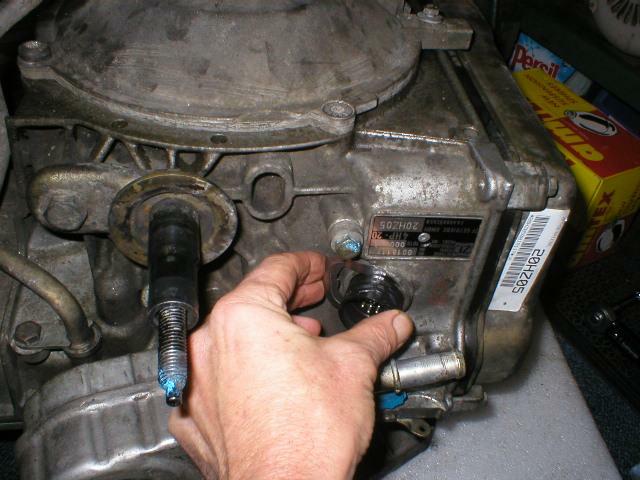

Kostal Socket Clip

The KOSTAL socket clip installed

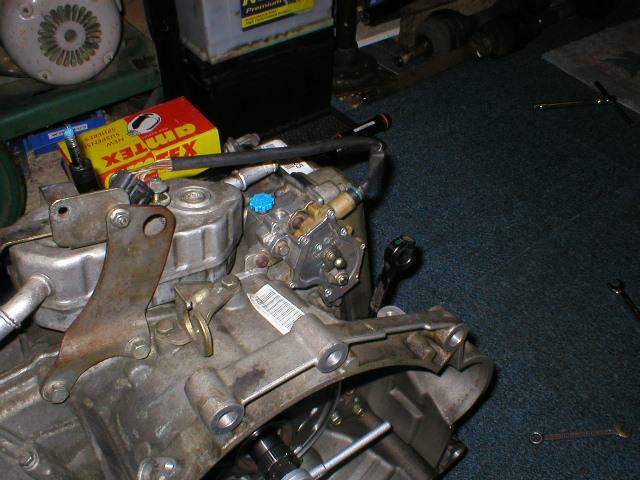

Multi Function Switch

Multi Function Switch

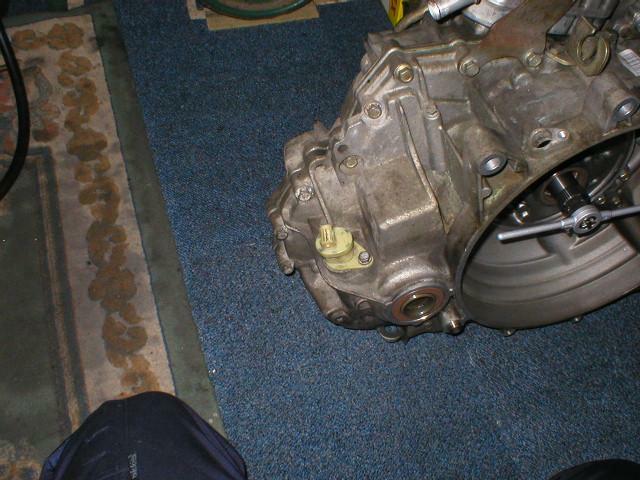

And finally.. The Vehicle Speed sensor

VSS

Job Done!
